SHEAR BALERS

We have five types of shear balers

Fixed

Side compression

Mobile

Transportable

For Aluminum


IMABE shear balers are a benchmark in the treatment of scrap metal and stand out for their robustness, efficiency and reliability. With an extensive experience of more than 45 years in this type of machines, IMABE has developed a powerful hydraulic system that provides high productivity to all the models it manufactures. IMABE shear balers enable to cut and reduce the volume of all types of scrap metal, including heavier or bulky materials. And all this with a reduced energy consumption.

IMABE designs its equipment working in close collaboration with its clients to provide the solution that best suits their needs, giving the possibility to choose between different cutting forces depending on the materials to be treated and offering fixed, side compression, mobile and transportable shears to adapt to the different mobility needs.

Models:

Fixed:

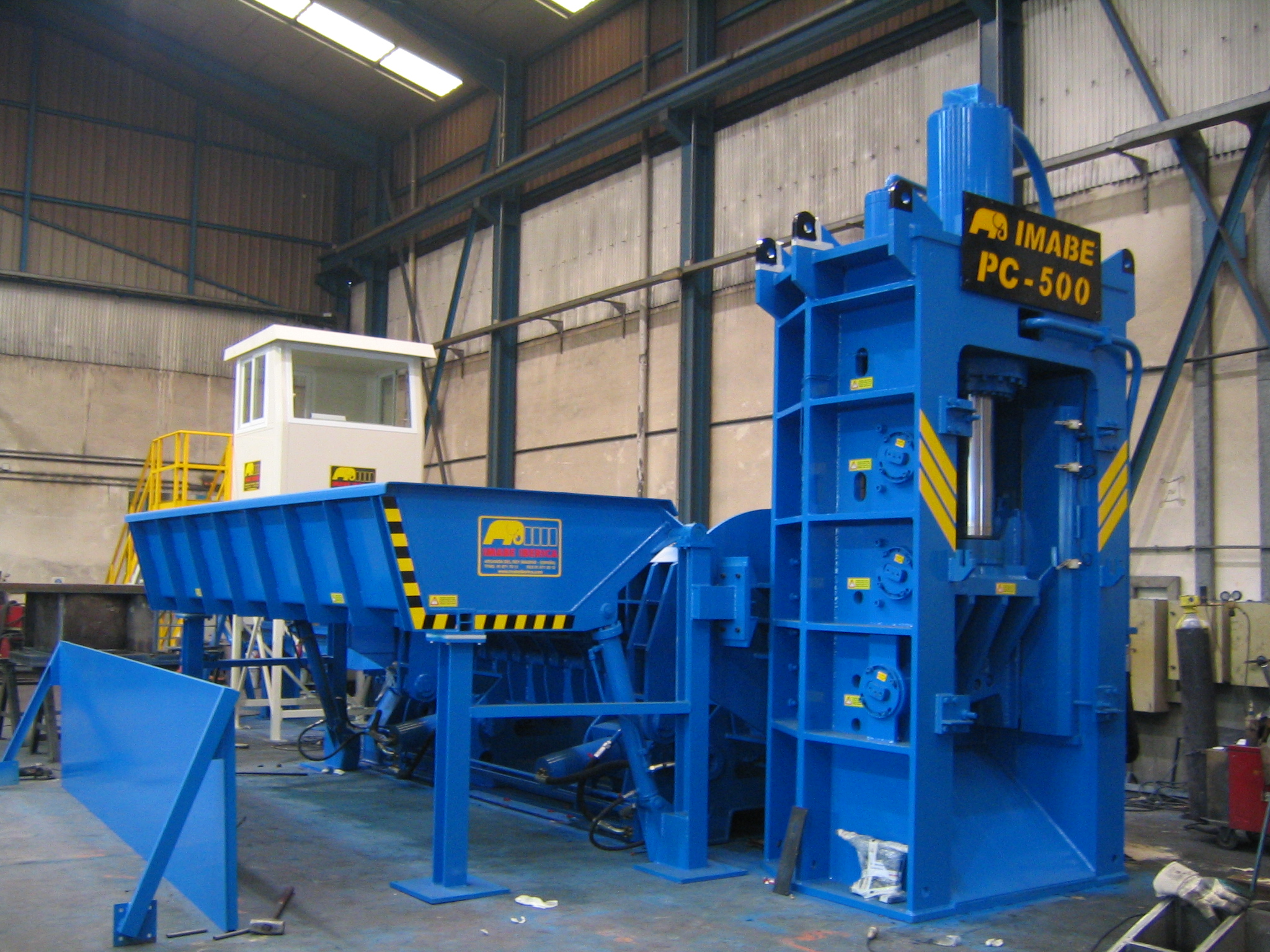

  • PC-500

    PC-500

    PC-500

    Characteristics:

    Cutting force
    500 T
    Cutting edge dimensions
    (width x height)
    790 x 550 mm
    Open compression box dimensions
    (length x width x height)
    5.000 x 2.000 x 900 mm
    Dimensions of closed compression box
    (length x width x height)
    5.000 x 700 x 500 mm
    Compression box covers force
    2 x 100 T
    Pushing force
    100 T
    Main engine power
    2 x 55 kW / 2 x 75 CV
    Production of the shear approx.
    < 10 T/h
  • PC-600

    PC-600

    PC-600

    Characteristics:

    Cutting force
    600 T
    Cutting edge dimensions
    (width x height)
    840 x 650 mm
    Open compression box dimensions
    (length x width x height)
    6.150 x 2.200 x 1.000 mm
    Dimensions of closed compression box
    (length x width x height)
    6.150 x 750 x 600 mm
    Compression box covers force
    3 x 100 T
    Pushing force
    100 T
    Main engine power
    4 x 37 kW / 4 x 50 CV
    Production of the shear approx.
    < 15 T/h
  • PC-800

    PC-800

    PC-800

    Characteristics:

    Cutting force
    800 T
    Cutting edge dimensions
    (width x height)
    840 x 650 mm
    Open compression box dimensions
    (length x width x height)
    7.000 x 2.200 x 1.000 mm
    Dimensions of closed compression box
    (length x width x height)
    7.000 x 750 x 600 mm
    Compression box covers force
    3 x 100 T
    Pushing force
    110 T
    Main engine power
    4 x 55 kW / 4 x 75 CV
    Production of the shear approx.
    < 24 T/h
  • PC-1000

    PC-1000

    PC-1000

    Characteristics:

    Cutting force
    1000 T
    Cutting edge dimensions
    (width x height)
    1000 x 650 mm
    Open compression box dimensions
    (length x width x height)
    8.000 x 2.400 x 1.000 mm
    Dimensions of closed compression box
    (length x width x height)
    8.000 x 950 x 600 mm
    Compression box covers force
    3 x 120 T
    Pushing force
    155 T
    Main engine power
    4 x 90 kW / 4 x 125 CV
    Production of the shear approx.
    < 40 T/h

Side compression:

  • PCL-800

    PCL-800

    PCL-800

    Characteristics:

    Cutting force
    800 T
    Cutting edge dimensions
    (width x height)
    840 x 750 mm
    Open compression box dimensions
    (length x width x height)
    8.000 x 2300. x 1.080 mm
    Dimensions of closed compression box
    (length x width x height)
    8.000 x 750 x 700 mm
    Side carriage force
    2 x 155 T
    Pushing force
    155 T
    Main engine power
    4 x 75 kW / 4 x 100 CV
    Production of the shear approx.
    < 30 T/h
  • PCL-1100

    PCL-1100

    PCL-1100

    Characteristics:

    Cutting force
    1100 T
    Cutting edge dimensions
    (width x height)
    1.000 x 750 mm
    Open compression box dimensions
    (length x width x height)
    8.000 x 2.400 x 1.080 mm
    Dimensions of closed compression box
    (length x width x height)
    8.000 x 900 x 700 mm
    Side carriage force
    2 x 175 T
    Pushing force
    155 T
    Main engine power
    6 x 75 kW / 6 x 100 CV
    Production of the shear approx.
    < 50 T/h

Mobile:

  • PCM-500

    PCM-500

    PCM-500

    Characteristics:

    Cutting force
    445 T
    Cutting edge dimensions
    (width x height)
    820 x 630 mm
    Open compression box dimensions
    (length x width x height)
    5.000 x 2.540 x 800 mm
    Dimensions of closed compression box
    (length x width x height)
    5.000 x 800 x 600 mm
    Compression box covers force
    2 x 80 T
    Pushing force
    120 T
    Diesel engine power
    168 kW / 225 CV
    Production of the shear approx.
    < 10 T/h
  • PCM-600

    PCM-600

    PCM-600

    Characteristics:

    Cutting force
    600 T
    Cutting edge dimensions
    (width x height)
    820 x 630 mm
    Open compression box dimensions
    (length x width x height)
    6.150 x 2.300 x 800 mm
    Dimensions of closed compression box
    (length x width x height)
    6.150 x 800 x 600 mm
    Compression box covers force
    3 x 80 T
    Pushing force
    120 T
    Diesel engine power
    205 kW / 275 CV
    Production of the shear approx.
    < 15 T/h

Transportable:

  • PCP-500

    PCP-500

    PCP-500

    Characteristics:

    Cutting force
    445 T
    Cutting edge dimensions
    (width x height)
    820 x 630 mm
    Open compression box dimensions
    (length x width x height)
    6.150 x 2.300 x 800 mm
    Dimensions of closed compression box
    (length x width x height)
    6.150 x 800 x 600 mm
    Compression box covers force
    3 x 80 T
    Pushing force
    120 T
    Diesel engine power
    168 kW / 225 CV
    Production of the shear approx.
    < 10 T/h
  • PCP-600

    PCP-600

    PCP-600

    Characteristics:

    Cutting force
    600 T
    Cutting edge dimensions
    (width x height)
    820 x 630 mm
    Open compression box dimensions
    (length x width x height)
    6.150 x 2.300 x 800 mm
    Dimensions of closed compression box
    (length x width x height)
    6.150 x 800 x 600 mm
    Compression box covers force
    3 x 80 T
    Pushing force
    120 T
    Diesel engine power
    168 kW / 225 CV
    Production of the shear approx.
    < 15 T/h
  • PCP-700

    PCP-700

    PCP-700

    Characteristics:

    Cutting force
    700 T
    Cutting edge dimensions
    (width x height)
    820 x 630 mm
    Open compression box dimensions
    (length x width x height)
    6.150 x 2.300 x 800 mm
    Dimensions of closed compression box
    (length x width x height)
    6.150 x 800 x 600 mm
    Compression box covers force
    3 x 80 T
    Pushing force
    155 T
    Diesel engine power
    205 kW / 275 CV
    Production of the shear approx.
    < 16 T/h

For Aluminum:

  • PC-300-AL

    PC-300-AL

    PC-300-AL

    Characteristics:

    Cutting force
    300 T
    Cutting edge dimensions
    (width x height)
    800 x 450 mm
    Open compression box dimensions
    (length x width x height)
    4.000 x 1.900 x 800 mm
    Dimensions of closed compression box
    (length x width x height)
    4.000 x 770 x 400 mm
    Compression box covers force
    2 x 90 T
    Pushing force
    80 T
    Diesel engine power
    2 x 45 kW / 2 x 60 CV
    Production of the shear approx.
    < 8 T/h
